| SRAGE V ENGINE | |
|---|---|
| ENGINE | |
| Type | Iseki E3FH |
| No. of cylinders | 3 |
| Displacement/Cyl | 1836/3 |
| Rated Power HP | 35.4 |
| Fuel capacity | 40 litres |
| PTO | |
| Clutch | Multi Wet Disc |
| Max Speed | 2000 |
| TRANSMISSION | |
| Type | Hydrostatic |
| STEERING | Power Steering |
| GROUND SPEED | |
| Forward | 15 km/h |
| Reverse | 10 km/h |
| 4WD | Auto or 4WD |
| BRAKES | Dry drum |
| TYRES | |
| Type | Turf |
| Front | 23 x 10.50 – 12 |
| Rear | 18 x 8.5 – 8 |
| DIMENSIONS | |
| Length | 2790 mm |
| Wheelbase | 1325 mm |
| Height | 2120 mm |
| Weight | 1060 kg |
| MOWER DECK | SCMB60 |
|---|---|
| Type | Rotary rear discharge |
| Cutting Width | 60" |
| No. of blades | 2 |
| Adjustment | 1 action lever |
| Min. cutting height | 2mm |
| MOWER DECK | SCMBA54 |
| Type | Rotary rear discharge |
| Cutting width | 54" |
| No. of blades | 2 |
| Adjustment | 1 action lever |
| Min. cutting height | 25mm |
| MOWER DECK | SSM54 |
| Type | Rotary side discharge |
| Cutting width | 54" |
| No. of blades | 3 |
| Adjustment | Pin type |
| Min. cutting height | 25 mm |
| COLLECTOR | SBC950 |
| Capacity | 950 litres |
| Blower | Turbine fan |
| Dump & lift | Hydraulic |
| Dump height | 2100mm |

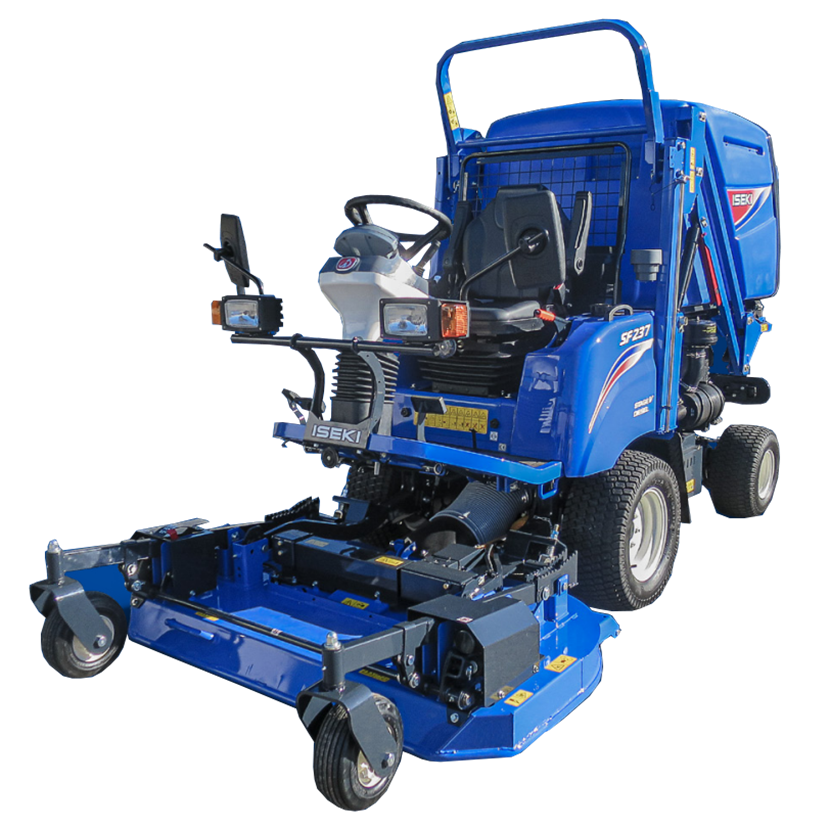

This model acts as the superseding model to the popular SF235 mower, offered with a powerful Stage V compliant 35 horsepower diesel engine.\
The SF range of out-front mowers are renowned for their flexibility and superior build quality, designed with a clear understanding of what commercial users want.
With a choice of cutting decks measuring 54” or 60” wide, these high performance out-front mower-collectors are designed to facilitate grass cutting in the most difficult areas.
Routine servicing and maintenance is refreshingly easy with excellent access to the engine, radiator and service points.
